Switchboard Mats

High Voltage Mats, Electrical ESD Safety Matting

For under electrical panels, fuse boxes, transformers and near high voltage electrical apparatus

us made electrical safety mats
CWF Flooring Inc
Corrugated Switchboard Mats | Military Specification Smooth Top | Diamond Switchboard Matting-Anti-Static Mats |
| ESD Mats | Dual Purpose Mats | Fuse Box Mats | Rubber Mats | Estimate Request | FAQ | Electrical Safety Mat Manuel (pdf) Tel. 1-661-273-8700
switchboard mat
A Power Panel Stores/Produces More than 50,000 Volts Alternating Current (VAC). High Voltage Switchboard Mats Saves Life's.

CWF Flooring, Inc. Group of Companies is a worldwide trusted leader in sales of switchboard mats, anti-static, high voltage safety mats for hazardous electrical environments for industry and military applications. CWFs mats are engineered to meet all safety standards for American and International requirements. Our US made switchboard safety mats are certified and tested to meet required safety standards.

CWF produces all types of electrical safety mats, anti-static mats for dielectric, anti-static areas. Meets Mil Specs, ASTMD-178, OSHA for electrical switchboard matting. Insulating switchboard matting is tested with accurate military and commercial technical data and values. All electrical safety mats can be used in a high voltage environment. CWF Flooring, Inc. ESD matting will guard employees and staff against accidental electrical and static shock. In addition, our quality anti-static, electro-static discharge mats and switchboard matting shields electrical equipment from electrostatics.

For more information call our sales department: Tel. 1-661-273-8700 or 1-661-273-8701 Text: 1-323-420-6794

Corrugated & Diamond Switchboard Matting - ASTMD-178
Whats the difference between Switchboard Mats and Anti Static Mats?
Switchboard matting is designed to protect people from high voltage. Vinyl switchboard mats will insulate workers from the dangers of electrical equipment. Electrical contractors are required to use high voltage matting.
Whereas, anti static mats protects electrical components and equipment from electrostatics that can damage sensitive electrical equipment and cause breakage and/or effect the performance of calibrations.
In a nut shell, Switchboard mats protects people anti static matting shields electrical equipment. Estimate Request

high voltage mat

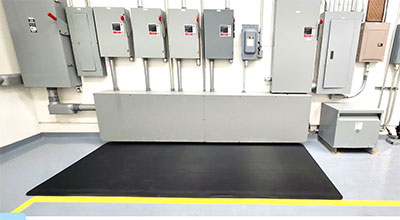

electrical safety matting

20000 VOC Mat30000 VOC Mat40000 VOC Mat50000 VOC Mat

vac

Rubber Mats and Electro-static Discharge Mats for Electrical Safety Are Produced in Four Thick nesses, 3/16" 1/4" 3/8" and 1/2"

Black Switchboard Matting
Alternating High Voltage Corrugated Mats Are Produced in 2, 3, or 4 Feet Wide Widths

Corrugated Switchboard Matting and Anti-Static Mats

high voltage safety mat1/4" Thick, Type II, Class 2 Switchboard Corrugated Switchboard Mats For Electrical Safety & Anti-Static
Have a DIELECTRIC TEST VOLTAGE of 30,000 VAC
Diamond & Corrugated high voltage mats-can be used as an anti static mat- are non-conductive, compounded and corrugated mat with a diamond texture for use in high voltage, fuse box and high static work areas. Corrugated mats have electro-static discharge properties.

Diamond-plate electrical safety ESD mat rolls conform to the Occupational Safety and Health Administration requirements for electrical machinery and meets ASTMD-178.
Said requirements via safety data is met via the entire mat surface. In addition, our Corrugated & Diamond Switchboard Matting is flame, oil and ozone resistance.

corrugated anti-static mat

The yellow safety boarder is an option on our high voltage switchboard mats. As well the yellow border will add an industrial appearance and broadcast to workers that safety is a priority with your company. Estimate Request

mat for high voltage20000 volt mat
  • A specialty compounded non-conductive corrugated matting designed to help prevent electric shock around high voltage electrical equipment, such as fuse boxes, and control panels.
  • Now meets all optional requirements for Ozone resistance, Flame Resistance, and Oil Resistance.
  • Tested to ASTM D/178/ANSI J6.7 Certification engraved on back.
  • A high quality high voltage safety matting.
  • Anti static as well.
  • Corrugated Switchboard Matting Info Sheet
  • Technical Specifications 3/16" Thick - Type II, Class 1
Corrugated high voltage mats and electro-static discharge mats will provide anti-slip feature for a business that cant afford slips. With this added feature, your dielectric mat and be dual purposed; an anti-slip mat and an electrical safety mat. Grounding mats and insulating platforms consists of mats strategically located on and near conductive flooring. Consult your company safety expert to determine the best location to place grounding mats and insulating platforms.
Dielectric Mat

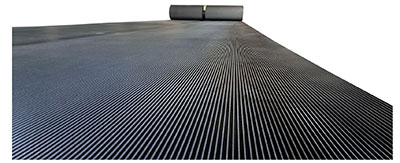

Corrugated Switchboard Mat Rolls

3/16" Thick - Type II, Class 1 Corrugated Switchboard Mats
Dielectric Mat Test Voltage: 22.000 VAC
Proof tested entire surface at 10.000 VAC
Rec. Max. use voltage: 7.500 VAC
Mat Color: Black
Size Weight Ea

Price Roll

3´ x 75´ 3.9 lbs. $733


Quantity :
Size :

1/4" Thick - Type II, Class 2 Switchboard Mats
Dielectric Test Voltage: 30.000 VAC
Proof tested entire surface at20.000 VAC
Rec. Max. use voltage: 17.000 VAC
Color: Solid Black (3' & 4' only)
Size Weight Ea

Price Per Roll

2´ x 75´ 3.5 lbs. $732
3´ x 75´ 5.2 lbs. $916
4´ x 75´ 6.8 lbs. $1465
Size Weight Ea

Price Per Linear Foot

2´ wide 3.5 lbs. $11.50
3´ wide 5.2 lbs. $14.38
4´wide 6.8 lbs. $23.00


Quantity :
Size :

3/8" Thick - Type II, Class 3 Switchboard Mats
Dielectric Mat Test Voltage: 40.000 VAC
Proof tested entire surface at 30.000 VAC
Rec. Max. use voltage: 26.500 VAC
Color: Black
Size Weight Ea

Price Roll

3´ x 75´ 577 lbs. $1521


Quantity :
Size :


1/2" Thick - Type II, Class 4 Switchboard Mats
Dielectric Mat Test Voltage: 50.000 VAC
Proof tested entire surface at 40.000 VAC
Rec. Max. use voltage: 36.000 VAC
Color: Black
Size Weight Ea

Price Roll

3´ x 30´ 10.7 lbs. $2060
Size Weight Ea

Price Per Lin. Ft.

3´ wide 10.7 lbs. $80.81


Quantity :
Size :

For more information call the Sales Dept. 1-661-273-8700 or 1-661-273-8701

us made electrical safety mats

electrical safety mat
Smooth Textured Mat Rolls For High Voltage Areas are Produced Up to 75 Feet Long

Military Grade Switchboard Mat
Mil-Spec Electrical Safety Mat

military spec mat⅛″ Smooth Switchboard Mats Conforms to MIL SPEC. MIL-DTL-155626, Type II
High voltage mat tops are smooth and meets military specifications. Switchboard mat and electro-static discharge mats surface is textured for sure non-slip floating.

Mat applications are for avionics, marine, commercial and industrial to protect workers in a high voltage area such as work benches, distribution boards or switch gears and can provide anti static protection for electrical equipment.

With respect to maintenance, the smooth-top military high voltage safety mat is the less laborious to clean. The diamond-plate and corrugated switchboard matting are the more labor intensive to clean.

Estimate Request

smooth electrical mat
Conforms to MIL SPEC, MIL-DTL-15562G, Type II Mil Spec Smooth Top Switchboard Mats
  • Conforms to MIL SPEC, MIL-DTL-15562G, Type II.
  • This specification is approved for use by all interested commands of the department of the Navy and the Marine Corps and is available for use by all other Departments and Agencies of the department of Defense.
  • Mil Spec Smooth Top Switchboard Mats Info Sheet
1/8" Thick - TMil. Spec. Mil-DTL-15562G, Type II
Dielectric Test Voltage: 30.000 VAC
Proof tested entire surface at 15.000 VAC
Rec. Max. use voltage: 3.000 VAC
Color: Black, Blue, Green
Size Weight Ea

Price Roll

3´ x 75´ 245 lbs. $952
Size Weight Ea

Price Per Lin. Ft.

3´ wide 3.3 lbs. $14.94


Quantity :
Size :
Color :

A company that fails to meet OSAH Electrical Safety guidelines will face serious legal consequences complicated with civil law suits by employees. Improper usage of electrical safety mats could lead to serious injury or death.
Its is crucial that electrical safety mats are used when working near switchboards, electrical panels, and all electrical machinery.
Department of Industrial Relations (DIR) States:
Subchapter 4. Construction Safety Orders Article 3. General "1518. Protection from Electric Shock. (a) Suitable protective equipment or devices shall be provided and used on or near energized equipment for the protection of employees where there is a recognized hazard of electrical shock or burns."
CA-DIR

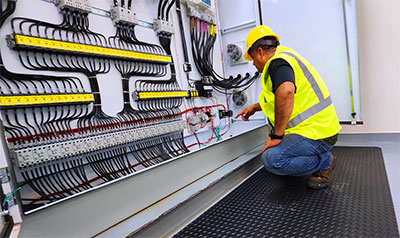

diamond plate electrical safety mat

Diamond Switchboard Mats and Anti-Static Mats

rhino matsDiamond Texture Will Add Anti-slip Features & An Industrial Appearance. Diamond Switchboards Are Available up to 75 Feet.

These anti-static mat rolls are used by the DOD as well as commercial and industrial uses. Handsome deck plates have a diamond surface. Resistant to sulphuric acid, O-Bomb aging as well as UV rays. Diamond plate texture high voltage safety mats add an industrial appearance to any electrical environment.
For more information call our sales department: 1-661-273-8700 or 1-661-273-8701
Non-conductive-mats diamond switch board mats
  • Conforms to MIL SPEC, MIL-DTL-15562G, Type III.
  • Conductive and Static Dissipative, Anti static
  • This specification is approved for use by all interested commands of the department of the Navy and the Marine Corps and is available for use by all other Departments and Agencies of the department of Defense.
  • Diamond Texture Switchboard Mat Info Sheet
3/16" Thick - TMil. Spec. Mil-DTL-15562G, Type III
Dielectric Test Voltage: 30.000 VAC
Proof tested entire surface at 15.000 VAC
Rec. Max. use voltage: 3.000 VAC
Color: Gray
Size Weight Ea

Price Roll

3´ x 75´ 252 lbs. $1338


Quantity :
Size :


Dual Purpose Dielectric Anti-Fatigue Mats

This high voltage mat is also an anti-fatigue mat. comfortable and safe for high voltage areas.
For more information call our sales department: 1-661-273-8700 or 1-661-273-8701
rhino mat ribbed electrical mat
  • This mat has a dual purpose: Anti-fatigue and switchboard and anti-static properties.With total thickness of 0.625 " (15.88 mm) consisting of 3/8" of polymeric sponge base under quarter inch thick, ASTMD-178 corrugated or diamond surfaced switch-board vinyl top. The anti-fatigue sponge base will add comfort to work areas while providing protection from electrical shock.
  • Our dual purpose mat conforms to OSHA for electrical shock and anti-static protection for electrical equipment. Certification is embossed on the back of the mat.
  • Our anti-fatigue and switchboard mat meets optional requirements city by ASTM for flame resistance, ozone and oil resistance
  • Dual Purpose Anti-fatigue and Switchboard Mat. Info Sheet, Sample Certificate of Compliance (CoC)
0.625"(15.88 mm) Recommended Maximum Use Voltage 3,000 VAC
ASTM D-178 Type II, Class 2
Dielectric Test 30,000 VAC
Proof Test Over Entire Surface 15,000 VAC
Color: Black
Size Texture Weight Ea

Price

2´ x 3' x 5/8" Ribbed 15 lbs. $83
2´ x 3´ x 5/8" Diamond w/ Yellow Border 15 lbs. $97
3´ x 4´ x 5/8" Ribbed 30 lbs. $154
3´ x 4´ x 5/8" Diamond w/ Yellow Border 30 lbs $183
3´ x 5´ x 5/8" Ribbed 38 lbs. $191
3´ wide x 5/8" Ribbed 7.5 lbs. $28 per lin. ft.
3´ wide x 5/8" Diamond w/ Yellow Border 7.5 lbs. $33 per lin. ft.
4´ wide x 5/8" Ribbed 10 lbs $41 per lin. ft.


Quantity :
Size :



ASTM-Certified Non-Conductive Mats

ASTM Non-Conductive Mats
  • Our non-conductive mats are ASTM CERTIFIED with a Seal of Approval.
  • Switchboard Matting are Individually tested per manufactured lot.
  • Meet Ozone, VOC, AC/DC proof-test voltage specified by OSHA.
  • Labeled under the guidelines of Occupational Safety and Health Administration Switchboard Matting Regulations.

Save on Shipping Costs:
Ship High Voltage Safety Matting by the Pallet

pallet of mats
Depending on the mat thickness and length 4-6 rolls can fit on one pallet.. Request an Estimate



Small Electrical Safety Mats


conductive-floor-mat

Reflective ESD mat with a anti-fatigue feature. With a resistively of less than 106 OHMS, tested ESD-5.7.1 1994. Two thickness options: 5/8 or 1 Beveled edges add anti-trip features. Size Options: 2'x3'x5/8" , 2'x3'x1" , 3'x5'x5/8" or 3'x5'x1"

2x3 electrical safety mat

Diamond Plate Conductive: A 5/32 thick anti-static mat, Resistively of less than 06 OHMS. Anti-slip diamond texture provide a industrial appearance. Size Options: 2'x3'x9/16" , 2'x3'x1" , 3'x5'x9/16" , 3'x5'x1"

anti-static-mat-3x3

Conductive Smooth Top: Manufactured with resilient foam core, dome covered with 1/8" thick smooth conductive top. Resistively less than 10 ohms. Edges are beveled. Use AA-1-7 ground cord for Static Dissipative Mats (ESD)2'x3'x1/2" , 2'x3'x7/8" , 3'x5'x1/2" , 3'x5'x7/8"

ESD-mat
The Polaris Dissipative Sponge Mat has full core through-out static dissipative features. Closed-cell foam with minimal compression. Dual textured, top & bottom and a dual function of anti-fatigue and anti-static. Size Options: 2'x3'x1/2" or 3'x5''x1/2"
Dual Purpose Dielectric: 5/8" thick, corrugated or diamond surfaced switch-board mats laminated to a 3/8" thick, super resilient polymeric sponge base provides employees a comfortable work surface to stand on while providing protection from accidental electrical shock. Rhino switchboard conforms to OSHA requirements for electrical protective devices with certification engraved on back. Rhino Dual-Purpose switch board matting also meets the optional requirements cited by ASTM for flame resistance, ozone resistance and oil resistance.

Quantity :
Size :

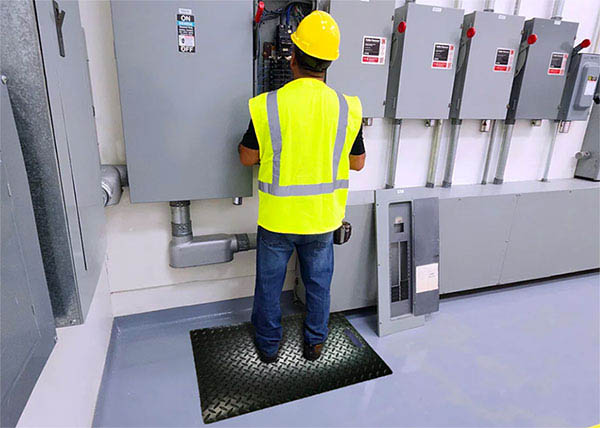

Fuse Box Safety Mat

Safety Mat For Fusebox
  • Fuse box safety mats is a staple for residential or commercial electricians who are repair/replace breakers, circuit parts for fuses.
  • Class 2 specification, ASTM D178, up to 17KV. A sponge base with a laminated cover will provide anti-fatigue and non-conductive properties.
  • Fuse box Safety Mats are manufactured for personal protective equipment and comfort, they should only be used to offer “temporary” electrical insulation for energized equipment.
  • CWF fuse box safety mats must be used in conjunction with engineering safeguards and should not be used solely against electrician hazards.
  • Overall size 16 × 18 x 5/8"
5/8" Thick -Class 2 specification,
ASTM D178, up to 17KV
Color: BLACK
Size Weight Ea

Price Roll

16" x 18" 17 lbs. $49.55


Quantity :
Size :


electricial floor mat
Residential Electricians Are Required to Use Electrical Floor Mats
Occupational Safety & Health Administration Stats

According to OSHA electrocutions are in the top four of fatal work related accidents. The rank is as follows:

  1. Falls – 264 out of 774 total deaths in construction in CY 2010 (34%)
  2. Electrocutions – 76 (10%)
  3. Struck by Object – 64 (8%)
  4. Caught-in/between – 33 (4%)

Protect your workers and employees with
CWF Flooring, Inc. anti static & switchboard mats!
Source: www.osha.gov/oshstats/commonstats.html

Cal/OSHA publication on electrical safety recommends the use of a non-conductive surface while working.

OSHA Electrical Safety Test
Danger High Voltage!

Rhino Switchboard Matting



VAC and Physical Specifications for High Voltage Safety Mats
Width Length Type Class Thickness Wt. Per Linear Foot  /Wt. Per Linear Meter  Texture DIELECTRIC TEST VOLTAGE VAC Recommended Maximum Use Voltage VAC
3 ft. (0.91m) 75 ft. (22.86m) II 1 3/16" (4.76mm) 3.9 lbs. (5.80 kg) Corrugated 20,000 7,500
2ft. (0.61m) 75 ft. (22.86m) II 2 1/4" (6.35mm) 3.5 lbs. (5.21 kg) Corrugated 30,000 17,000
3ft. (0.91m) 75 ft. (22.86m) II 2 1/4" (6.35mm) 5.2 lbs. (7.73 kg) Corrugated 30,000 17,000
4ft. (1.22m) 75 ft. (22.86m) II 2 1/4" (6.35mm) 6.8 lbs. (10.12 kg) Corrugated 30,000 17,000
2ft. (0.61m) 75 ft. (22.86m) II 2 1/4" (6.35mm) 3.5 lbs. (5.21 kg) Diamond 30,000 17,000
3ft. (0.91m) 75 ft. (22.86m) II 2 1/4" (6.35mm) 5.2 lbs.  (7.73 kg) Diamond 30,000 17,000
4ft. (1.22m) 75 ft. (22.86m) II 2 1/4" (6.35mm) 6.8 lbs. (10.12 kg) Diamond 30,000 17,000
3ft. (0.91m) 75 ft. (22.86m) II 3 3/8" (9.53mm) 7.7 lbs. (11.45 kg) Corrugated 40,000 26,500
3ft. (0.91m) 30ft. (9.14m) II 4 1/2" (12.70mm) 10.7 lbs. (15.92 kg) Corrugated 50,000 36,000
3ft. (0.91m) 75ft. (22.86m) III Mil Spec 3/16" (4.76mm) 3.4 lbs. (5.06 kg) Diamond 30,000 3,000
About: Non-conductive-mats & High Voltage Mats

worldwide shipments of electrical safety mats

us made rubber electrical safety mats

Frequently Asked Questions
1. We manage an accessory building that connects to another high voltage accessory building. City officials stated we need a high voltage safety mat for our New York based company. Which mat do you recommend?

We cant make a recommendation. There are too many unknown factors to consider. We need to know the maximum voltage & wattage in both accessory buildings, type of floor, type of walls, moisture content on the floor, etc. Please contact your safety coordinator to make a determination. A general rule: Add 5000 VAC over the minimum requirement for added safety.

2. Is there any difference other than aesthetics between the corrugated mats and the diamond-plate switchboard mat?

The corrugated electrical safety mat provides a bit more anti-slip features. The texture of ones shoe sole is more of a determining factor for anti-slip properties than the mat itself, FYI.

3. We manufacture electrical components in a static-free environment. Justifiably so, our production-line employees are complaining that the thin anti-static mats we currently use are too hard. We want to buy an anti-fatigue mat that is also anti-static mat. Can you help our fatigue workers?

We manufacture a Dual-Purpose Dielectric-Anti-Static and anti-fatigue mat thats 5/8 thick. This is a two-ply mat with a foam core layer with a vinyl ply to protect the foam from pre-mature wear and tear. Of course, the vinyl will add additional protection from higher voltage up to 300 VAC, Dielectric Test 30,000 VAC. Mat with yellow safety borders are available.

4. Are CWFs electrical safety mats certified by ASTM?

Absolutely yes! All our anti-static, electrical safety mats and non-conductive mats and switchboard mats are embossed with a seal of certification. Be assured and secured with CWFs switchboard mats. We are the worldwide trusted leader in electrical safety mats.

5. Our production facility has 20 work stations that need anti-static floor mats. Would it be more economical to buy a 75 foot roll or (20) 3 x 4 mats? And also, can our maintenance dept. cut these anti-static mats by hand?

Most likely buying a 75 foot anti-static mat roll would be more economical. And yes, this can be cut my hand. For an estimate, please visit: http://switchboardmat.com/#estimate

6. can a forklift drive over the switch board matting without damaging the mat?

Yes. However, make sure the forklift is not stationary when turning the wheels. This will damage the matting.

7. our research center is working on a [top secret] with [top secret] to produce [top secret]. Static-electricity can cause explosions, as you know. We need a static-free room. Please advice.

Well, well, without providing details we suggest installing anti-static matting on the floor, wall and ceiling. A long anti-static entrance mat is also recommended. As well, researcher must wear anti-static clothes, shoes and hair net. Contact your chief safety engineer for resolutions.

8. We want to use a rubber mats for high voltage area. Can we do that?

No. High voltage mats are strickly tested and certified to meet the required VAC, Dielectric Test Voltage, Max Use Voltage, Flammability, etc. There are dangerous consquences if the incorrect mat is used.

Switchboard Mat Estimate Request

Manager's Discount May Be Applied to Large Orders
1-661-273-8700 or 1-661-273-8701
*Required Fields
*First Name & Last Name :
*
Residential
Military Commercial
*Phone:
*E-mail:
*Length:
*Thickness:
*Color:
*Texture:
*Width:
*Class:
*Type:


Virtual Terminal

The Virtual Terminal is used by customers for the following reasons:
1. To pay via credit card estimates or shipping balances.

Amount  $

CWF Flooring, Inc. 1-661-273-8701
38325 6th Street East, Palmdale, CA 93550
Tel. 1-661-273-8700 or 1-661-273-8701 TEXT 1-323-420-6794
Fax 1-661-885-8300 Email: Sales@SwitchBoardMat.Com
Owned by CWF Flooring, Inc. of Palmdale, CA United States of America

Designed By:
www.WebDesignPlace.com, Palmdale, CA 93550
